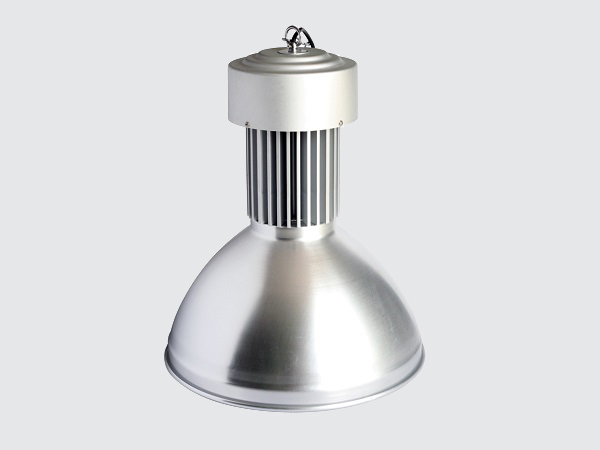

LED High Bay Light

SAMPLE

Features & Application

1. Material: All aluminum, surface treatment aluminum housing independent research and development production of a unique reflector that can not rust, dust, high luminous efficiency, long life, low power consumption.

2. Application: Factories, shopping malls, exhibition halls, car parks, playgrounds, tennis courts, gym parks, building fade lighting.

Technical ParametersLED High Bay Light

Input voltage	:	AC85-265V
Frequency range	:	50Hz-60Hz
A tal harmonicdistortion	:	≦9%
Power factor	:	>0.95
Working voltage	:	DC30-36V
LED quantity	:	3PCS
LED consumption	:	180W
System consumption	:	190W
LED luminous efficiency	:	90-100LM/W
LED luminouns	:	Warm white \| 17558LM Pure white \| 18500LM Cold white \| 17980LM
Lamp's efficiency	:	>91%
Average illuminance	:	(Height):6M \| >378 LUX (Height):8M \| >216 LUX (Height):10M \| >138 LUX
Illuminance area	:	(Height):6M \| φ6.5M Round (Height):8M \| φ8.3M Round (Height):10M \| φ10.4M Round
Illuminance uniformity	:	>0.8
Color temperature	:	Warm white \| 3100-3300LM Pure white \| 6000-6500LM Cold white \| 7000-8000LM
Color rendering index	:	Warm white \| Ra > 75 Pure white \| Ra > 80 Cold white \| Ra > 80
Light distribution	:	Symmetrical / Round spot
Light design	:	LED and secondary distribution reflector light
Junction temperature	:	≦75°C
Working temperature	:	-40°C － +50°C
Storage temperature	:	-25°C － +65°C
IP Grade	:	Ip54
Working life-span	:	>30,000H
Connect wire	:	-25°C － +65°C Brown \| L Fire wire Blue \| N Zero wire Yellow/Green \| G Ground wire
Color of lamp shell	:	Black or Silver
Certificate	:	CE, RoHS
Beam angle	:	60(Concentrating)/120(Astigmatis)
Lamp weight : G.W./N.W.	:	9.8 Kg/9.3 Kg
Lamp packing dimension	:	49 X 34.5 X 28.5cm/49 X 49 X 31.5cm
