Technology from Japan

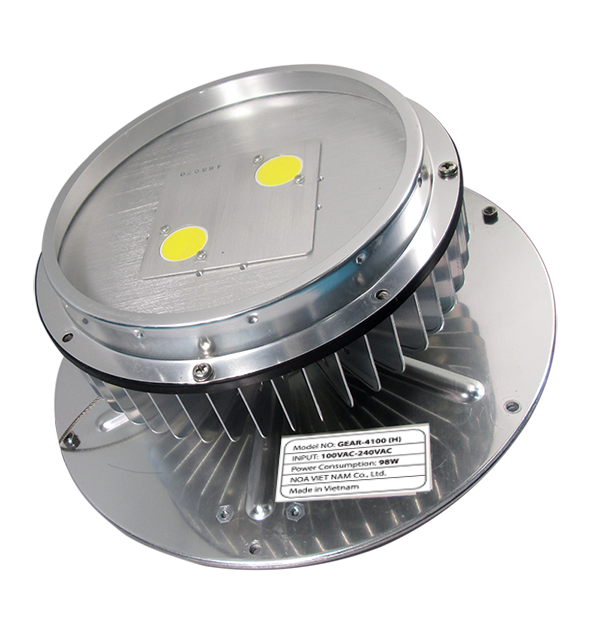

LED High Bay Light

GEAR-4100H

Features & Application
1. Material: All aluminum, surface treatment aluminum housing independent research and development production of a unique reflector that can not rust, dust, high luminous efficiency, long life, low power consumption.
2. Application: Factories, shopping malls, exhibition halls, car parks, playgrounds, tennis courts, gym parks, building fade lighting.

Technical ParametersLED High Bay Light
Model   :   GEAR-4100H
Lamp's Power   :   98W
Operating Voltage   :   AC90-265, 50/60Hz
Input Current(A)   :   0.45A (220VAC)
Optimal Operating Humidity   :   0% to 90%
Operating Temp   :   - 45 ºC to +50 ºC
Power factor   :   >0.98/100V > 0.95/230V
Luminous Flux   :   13550Lm
Lifespan(hours)   :   50,000 hrs
Light Attenuation ratio   :   Less than 3% in 30,000hrs
CRI   :   >70Ra
Color Tempurature   :   5000K(NW)
Use Environment   :   Indoor only
Body   :   Aluminum
Weight   :   3.7kg
Dimension   :   400*520mm
Light Angle   :   90degress
Approval   :   CE, RoHS
