Technology from Japan

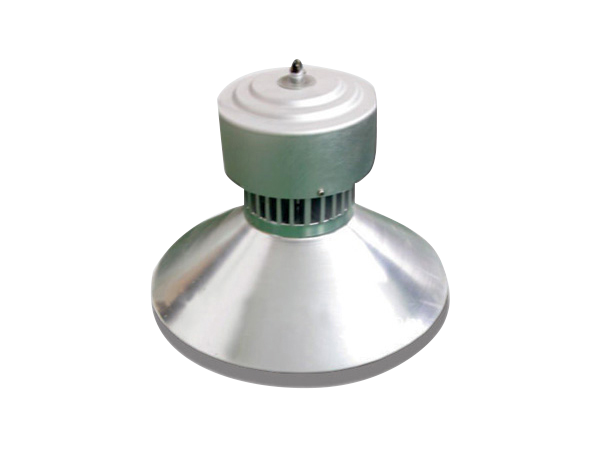

LED High Bay Light


Features & Application
1. Material: All aluminum, surface treatment aluminum housing independent research and development production of a unique reflector that can not rust, dust, high luminous efficiency, long life, low power consumption.

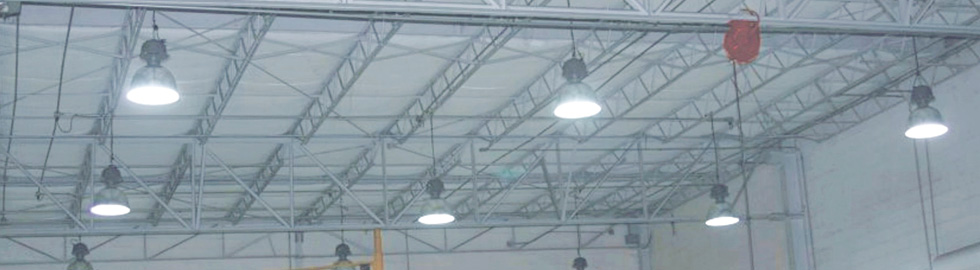

2. Application: Factories, shopping malls, exhibition halls, car parks, playgrounds, tennis courts, gym parks, building fade lighting.
Technical ParametersLED High Bay Light
Model   :   FG-160A-120W
Lamp's Power   :   120W
Operating Voltage   :   100-240V AC, 50/60Hz
Input Current(A)   :   2.1A (220VAC)
Optimal Operating Humidity   :   0% to 90%
Operating Temp   :   - 40 ºC to +60 ºC
Power factor   :   0.95
Luminous Flux   :   12000-13200Lm
Lifespan(hours)   :   50,000 hrs
Light Attenuation ratio   :   Less than 3% in 30,000hrs
CRI   :   85 Ra
Color Tempurature   :   5500K-6500K(NW)
Use Environment   :   Indoor only
Body   :   Aluminum
Weight   :   5.5kg
Dimension   :   400*520mm
Light Angle   :   90degress
Approval   :   CE, RoHS
