Technology from Japan

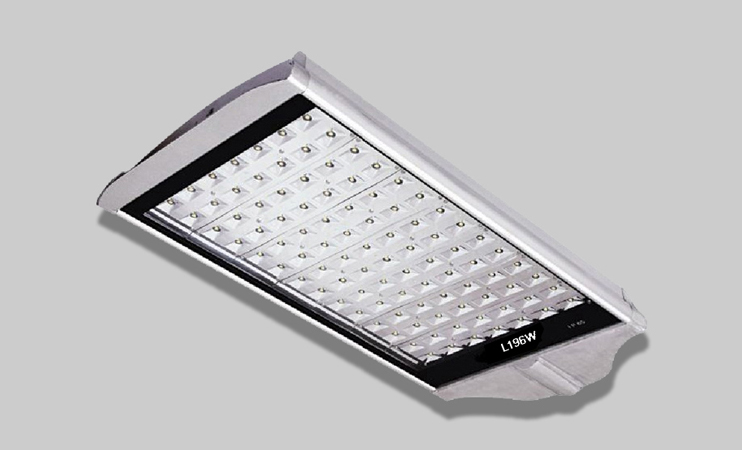

LED Street Light

NOA-ST-196W

Features & Application
LED street lights use high-quality LED as a light source, with the nicely developed reflector, high light efficiency, uniformity. Partial integration with heat dissipation of the state. Aluminum alloy with thermal conductivity as the cooling of the main, the appearance of the oxidation process, while ensuring thermal decay. Constant current power supply with voltage regulator. At the same time lighting protection class IP65, to ensure that the whole light in a different environment to a stable job.
Adopting aluminum with the thermal conductivity, light and firm, excellent mechanical strength and high impact resistance, effectively reducing the windage resistance.
Employing advanced heat dispersion technology, optimizing the light distribution by the reflector, excellent heat dissipation performance, good soft rays, lighting uniformity, cold-light illuminator design, good mono-chromaticity.
Application: For urban Freeway/trunk, courtyards and other road lighting.

Technical ParametersLED Street Light
Model   :   NOA-ST-196W
Lam'p Power   :   196W
Operating Voltage   :   AC85-265V,50/60Hz
Power Effeciency   :   >0.92%
Optimail Operating Humidity   :   10% to 90%
Opreting Temp   :   - 20 ºC to +55ºC
Beam divergence angle   :   H:140, V:65
Power Factor   :   >0.95
Luminous flux   :   21500Lm
Lifespan(Hours)   :   40,000Hrs
IP Rating   :   IP65
CRI   :   Ra>75
Color temperature   :   2800K~3200K(WW)
4000K~5000K(NW)
5500K~6500K(CW)
Use Environment   :   Ourdoor
Body   :   Aluminum
Cover   :   Glass
Weight   :   17.3Kg
Dimension   :   925*310*80mm
Istall Hole   :   ф64mm
Light angle   :   120 Degrees
Approval   :   CE, RoHS
